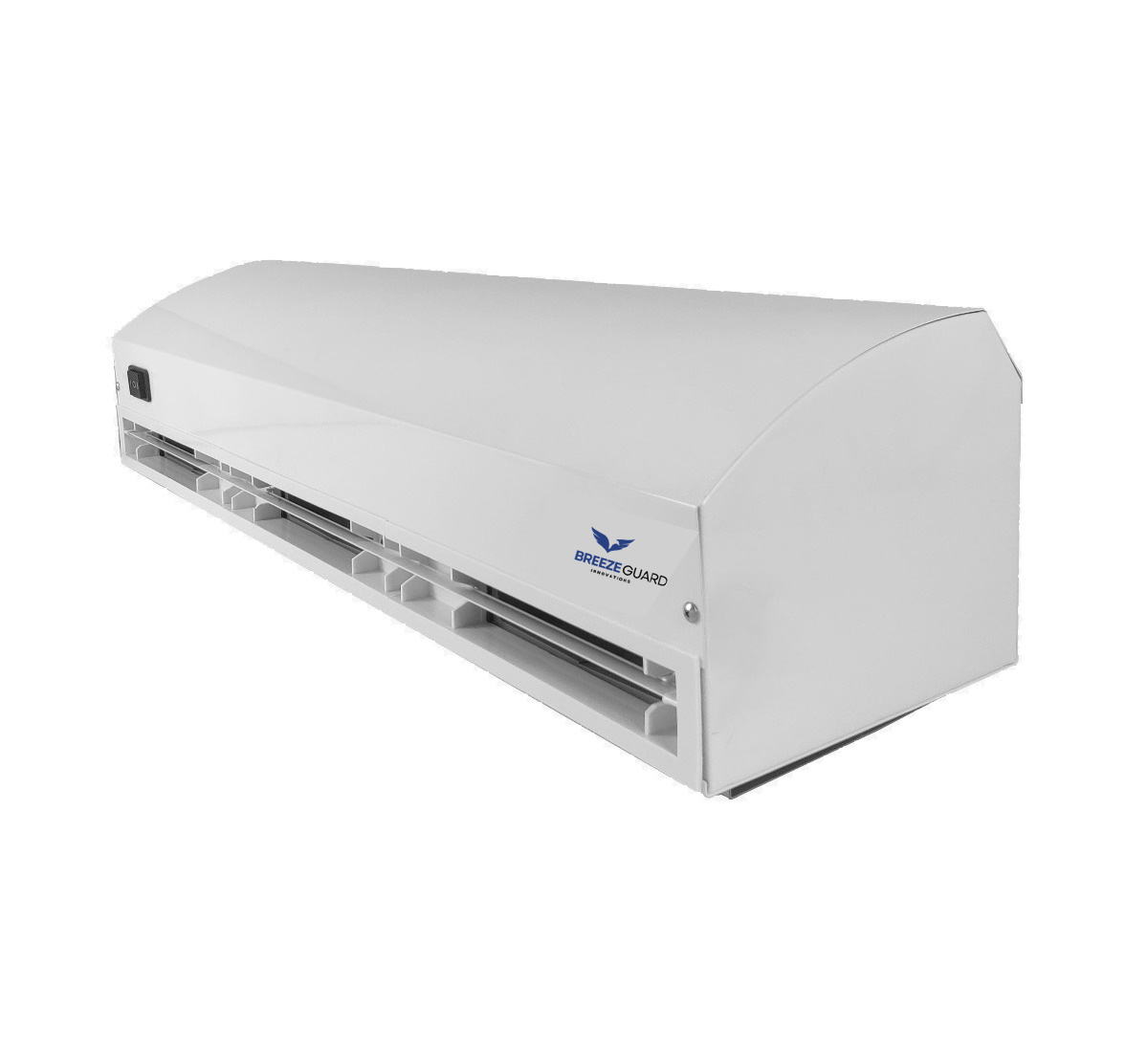

Commercial Ms Powder Coated Air Curtain

SPECIFICATION

Model no.	BGIA17 (2FT)	BGIA18 (3FT)	BGIA19 (3.5FT)	BGIA20 (4FT)	BGIA21 (5FT)

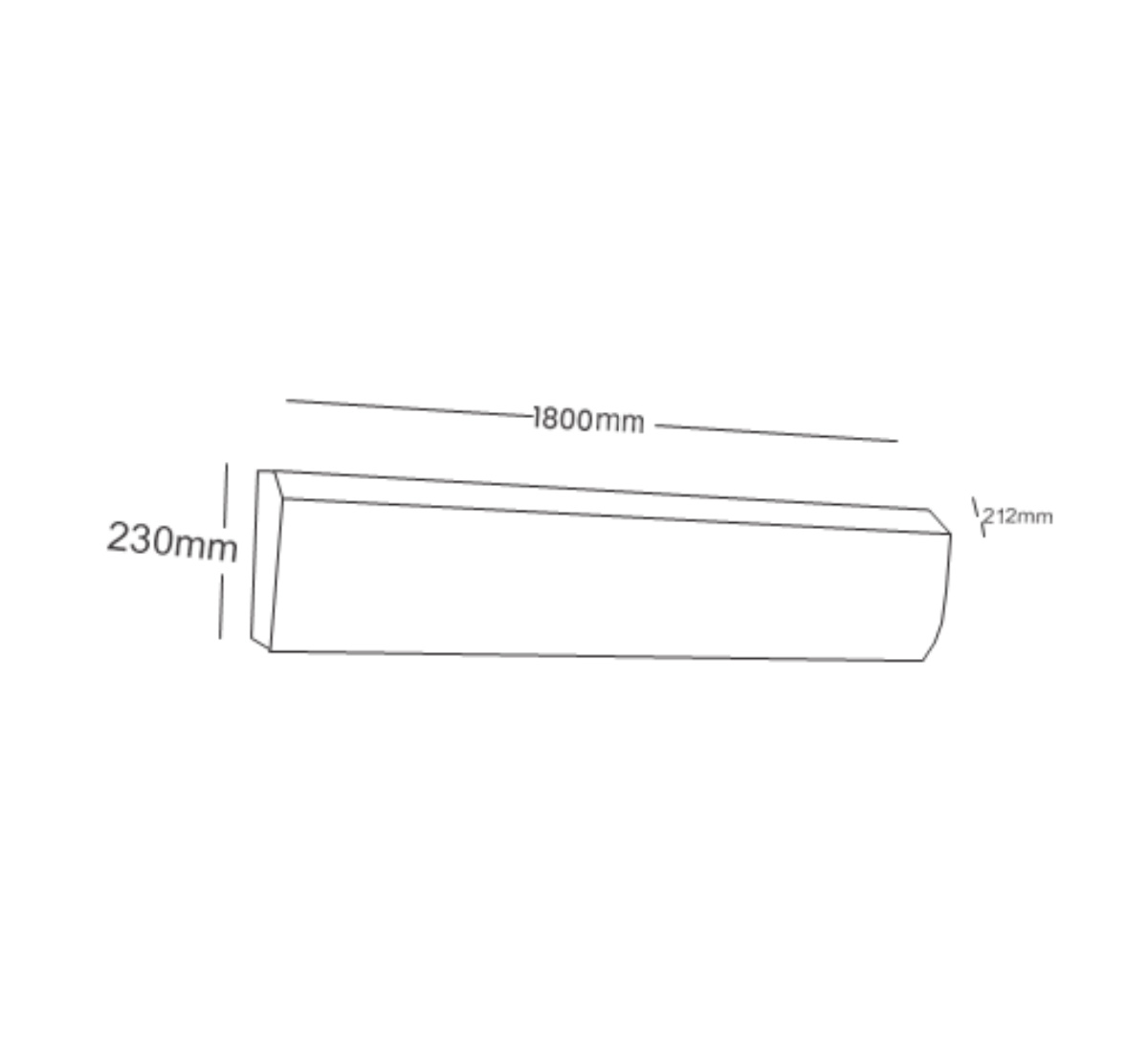

1. Dimensions (Height, Depth, Width)	L600MM W210MM H235MM	L900MM W210MM H235MM	L1000MM W210MM H235MM	L1200MM W210MM H235MM	L1500MM W210MM H235MM
2. Standard height of curtain formed	Up To 10FT	Up To 10FT	Up To 10FT	Up To 10FT	Up To 10FT
3. Air Velocity	High 21m/s & low 16m/s	High 21m/s & low 16m/s	High 21m/s & low 16m/s	High 21m/s & low 16m/s	High 21m/s & low 16m/s
4. Noise level	45DB	47–52DB	53DB	49–54DB	50–55DB
5. No. of Blower	2 BLOWERS	3 BLOWERS	3 BLOWERS	4 BLOWERS	5 BLOWERS
7. Phase	Single-phase	Single-phase	Single-phase	Single-phase	Single-phase
8. RPM	2800RPM	2800RPM	2800RPM	2800RPM	2800RPM
9. Air Curtain thickness	1mm	1mm	1mm	1mm	1mm
10. Body Material	MS Power Coated	MS Power Coated	MS Power Coated	MS Power Coated	MS Power Coated
11. Motor No. of Shaft	1 Double Shaft	1 Single, 1 Double Shaft	1 Single, 1 Double Shaft	2 Double Shaft	1 Single, 2 Double Shaft
12. Blower	ABS	ABS	ABS	ABS	ABS
14. Insect/dust rejection	98%	98%	98%	98%	98%
15. Air Curtain Operation	Electrical	Electrical	Electrical	Electrical	Electrical
17. Motor HP	0.20HP	0.20HP	0.20HP	0.20HP	0.20HP
19. Voltage	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz
20. Warranty	1 Year	1 Year	1 Year	1 Year	1 Year
