Breeze Guard Innovations

Commercial Stainless Steel 304 Air Curtain

SPECIFICATION

Model no.	BGIA01 (2FT)	BGIA02 (3FT)	BGIA03 (3.5FT)	BGIA04 (4FT)	BGIA05 (5FT)

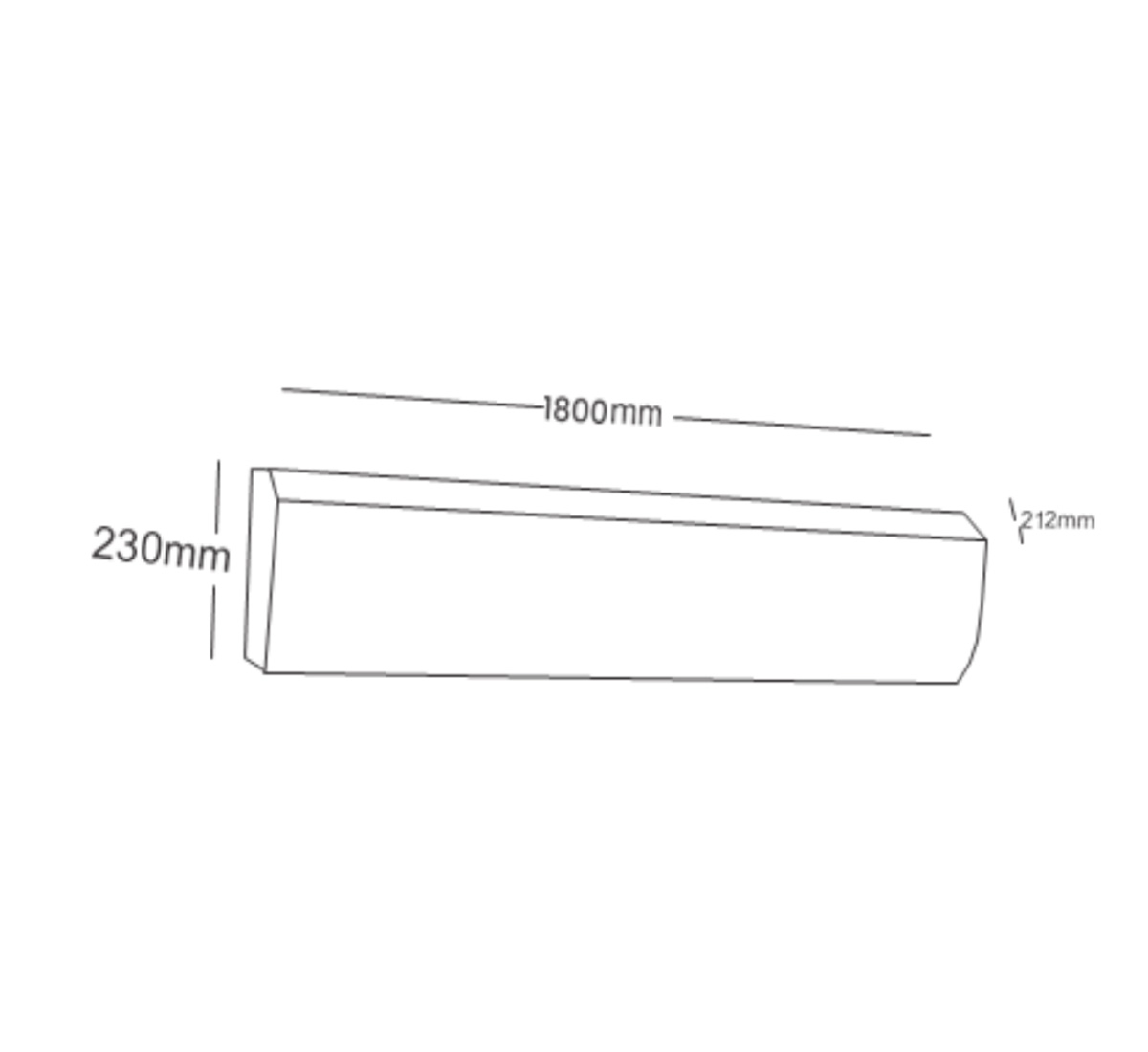

1. Dimensions(Height, Depth, Width)	L600MM W210MM H235MM	L900MM W210MM H235MM	L1000MM W210MM H235MM	L1200MM W210MM H235MM	L1500MM W210MM H235MM
2. Standard height of curtain formed	Up To 10FT	Up To 10FT	Up To 10FT	Up To 10FT	Up To 10FT
3. Air Velocity	High21m/s & low16m/s	High21m/s & low16m/s	High21m/s & low16m/s	High21m/s & low16m/s	High21m/s & low16m/s
4. Noise level	45DB	47-52DB	53DB	49-54DB	50-55DB
5. No. of Blower	2BLOWERS	3BLOWERS	3BLOWERS	4BLOWERS	5BLOWERS
7. Phase	Single-phase	Single-phase	Single-phase	Single-phase	Single-phase
8. RPM	2800RPM	2800RPM	2800RPM	2800RPM	2800RPM
9. Air Curtain thickness	1mm	1mm	1mm	1mm	1mm
10. Body Material	SS 304	SS 304	SS 304	SS 304	SS 304
11. Motor No. of Shaft	1Double Shaft	1 Single, 1Double Shaft	1Single,1Double Shaft	2Double Shaft	1Single,2Double Shaft
12. Blower	ABS	ABS	ABS	ABS	ABS
14. Insect/dust rejection	98%	98%	98%	98%	98%
15. Voltage	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz
17. Motor HP	0.20HP	0.20HP	0.20HP	0.20HP	0.20HP
19. Voltage	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz
20. Warranty	1Year	1Year	1Year	1Year	1Year
